SUNsuSEA specification





SUNsuSEA, Oyster 46/22

Designer - Rob Humphreys with Oyster Design Team

Registration POL 8906

Call sign SPG 3268

MMSI 261016090



Port of call GDAƃSK





Dimensions
Length overall     14.26 m (46' 10") including pulpit
Length of hull 13.94m (46' 9")
Length of waterline 12.36 m (40' 7")
Beam 4.41 m (14' 6")
Draft HPB keel (standard) 2,16 m

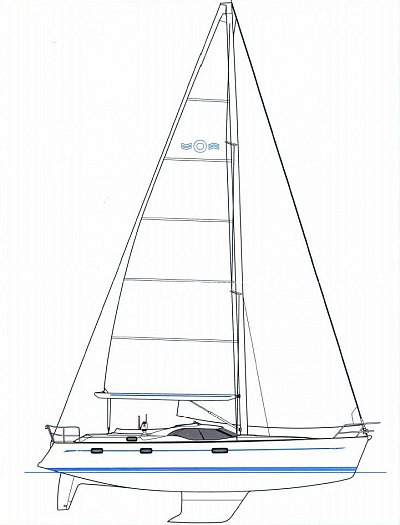

Rig and spar type Masthead sloop with fully battened main
Ballast keel type High Performance Bulb (HPB)
Ballast 5,400 kg (11,900 lb)
Displacement 17,500 kg (38,580 lb)
Engine Yanmar  4JH4- TE, 56kw (75hp), shaft
Tanks (fuel) 750 l (198 gal)
Tanks (water) 650 l (172 gal)
Sail Area 120.1 sq. m (1,293 sq. f) with 150% foretriangle
Air Draft height of mast 19.03 m (62' 5") including antennas: 20.1 m (65' 11")
Sail area/ displacement ratio 17.65
Displ/lenght waterline ratio 258
Pounds per inch immersion 1895

Construction
Hull and deck construction   Hand lay-up GRP hull and deck
Outer hull Laminate in Vinylester resin
Hull Hull style lines – 1x cove and 2x boot top lines
Antifoul 2 coats International antifouling paint Micron 77 blue
Keel High Performance Bulb external lead keel
Rudder Fully protected skeg-hung rudder
Design EURCD Design Category ‘A’ Ocean

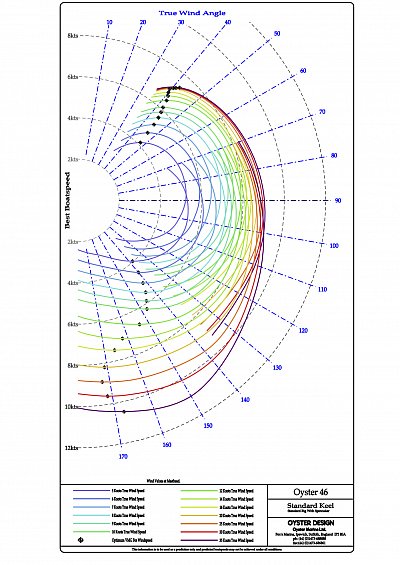

Oyster 46 Polar characteristics standard keel
